1) Close-coupled for quite, stable flow operation.
2) Light weight for easy one-man installation.
3) Clear Cam and Ramp Lid for added service convenience.
4) 50Hz TEFC IE3 motors, Three Phase.
5) Closed impeller for long life and durability.
6) 6-inch suction and 4-inch discharge with strainer pot.
7) Great for use with Acu DriveXS Variable Frequency Drives.
8) Self-priming pump with strainer pot for commercial pool.
9) Connection : 6” 10K flange (Suction), 4″ ANSI150flange (Delivery).
10) Specs : 10Amp, Three phase, 7.5HP, 5.6KW, 415Voltage, 50Hz, non-submersible.
11) Dimension : 1127mm Length x 483mm Width x 546mm Height. 77Kg Weight.
12) Feature : Built-in strainer with see thru lid cover.
13) From PENTAIR Water Pool and Spa, USA.
14)CE certified.
Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer. P1-108 10/18 ©2020 Pentair Water Pool and Spa, Inc. All rights reserved.

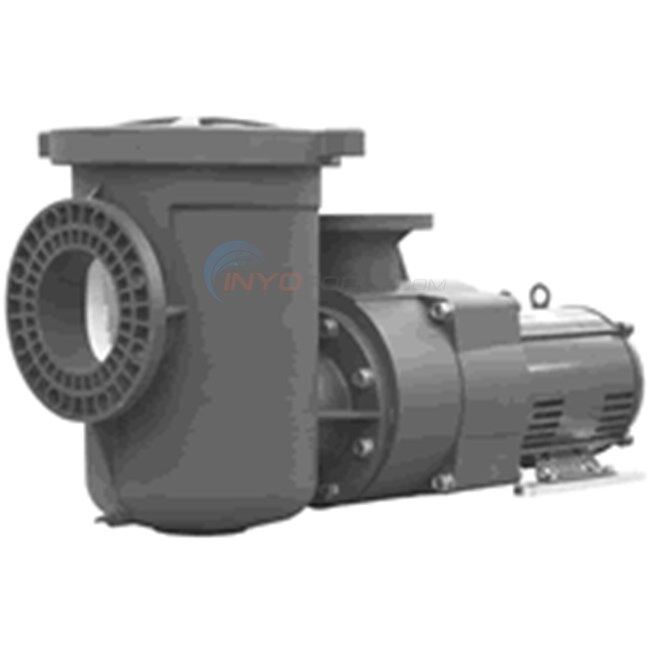

FOR COMMERCIAL SWIMMING POOLS AND OTHER WATER SCAPE APPLICATIONS
EQ Series Pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all-plastic pumps designed for the commercial pool and water applications market. The EQ Series Pump impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life.
