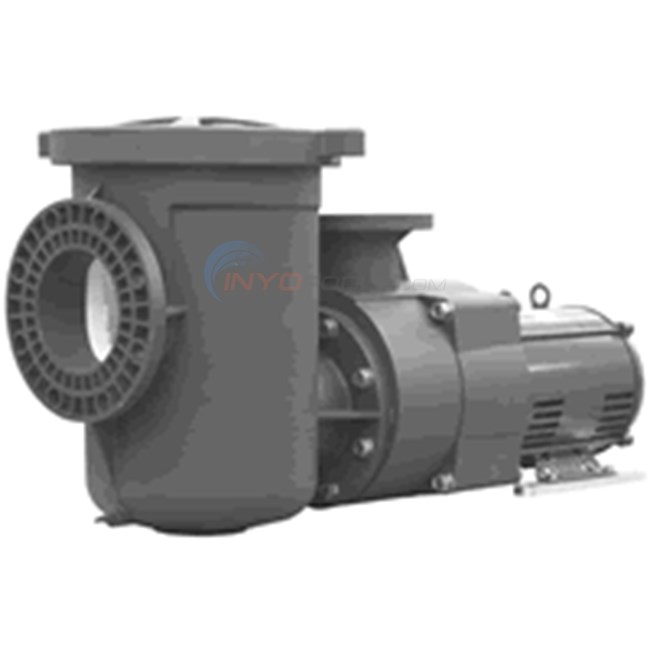

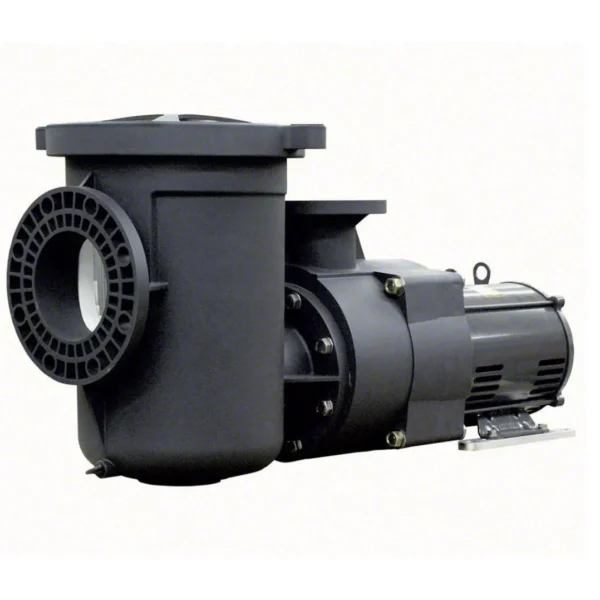

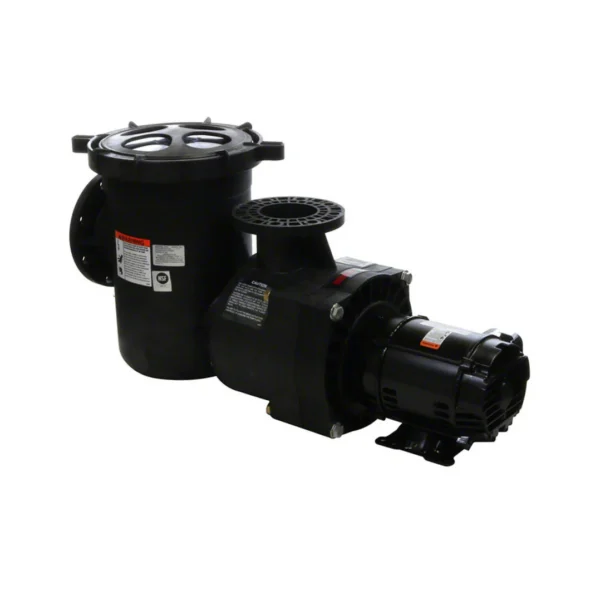

Description
1) Close-coupled for quite, stable flow operation.
2) Light weight for easy one-man installation.
3) Clear Cam and Ramp Lid for added service convenience.
4) 50Hz TEFC IE3 motors, Three Phase.
5) Closed impeller for long life and durability.
6) 6-inch suction and 4-inch discharge with strainer pot.
7) Great for use with Acu DriveXS Variable Frequency Drives.
8) Self-priming pump with strainer pot for commercial pool.
9) Connection : 6” 10K flange (Suction), 4″ ANSI150flange (Delivery).
10) Specs : 13.3Amp, Three phase, 10HP, 7.5KW, 415Voltage, 50Hz, non-submersible.
11) Dimension : 1127mm Length x 483mm Width x 546mm Height.91Kg Weight.
12) Feature : Built-in strainer with see thru lid cover.
13) From PENTAIR Water Pool and Spa, USA.
14)CE certified.
Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer. P1-108 10/18 ©2020 Pentair Water Pool and Spa, Inc. All rights reserved.
